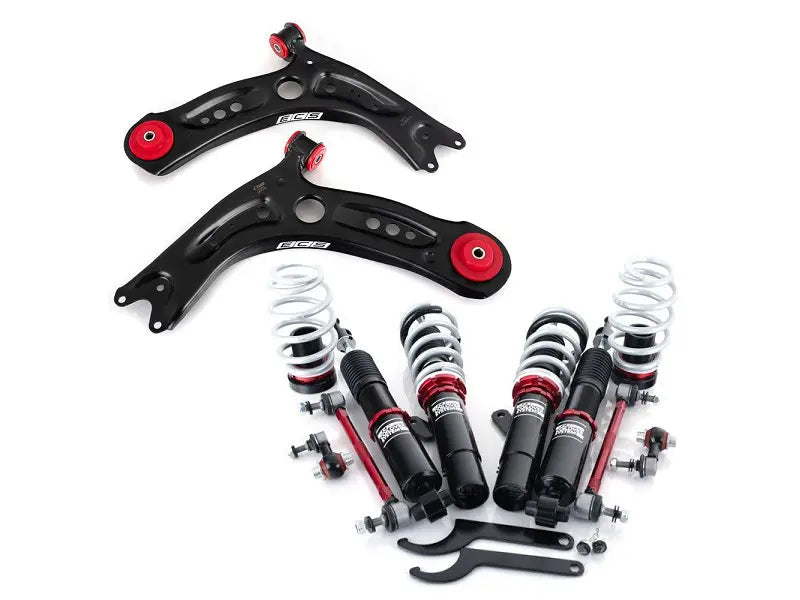

MK7/MK8/8v Adjustable Damping Coilover System- With Installation Kit - & Pre-Assembled Front Control Arms With Polyurethane Bushings

COILOVER DETAILS:

The ECS Tuning Performance Coilover System provides a sport-tuned, height, damping, and body adjustable suspension with substantial performance benefits using high quality materials and coatings to replace your worn suspension, all while giving your vehicle that perfect ride height!

Our ECS Coilover System provides confidence and precise control with a ride that is firm, yet compliant for the majority of enthusiasts.

PERFORMANCE FEATURES

• 32 levels of rebound damping adjustment
• Heat treated, progressive rate coil springs. 5K Front / 5K Rear
• Adjustable damping, monotube shocks/struts paired with optimized progressive rate coil springs gives your vehicle road-sticking grip with reduced body roll for exceptional confidence in your vehicle's handling. With your vehicle's new, lower ride height the center of gravity is now moved lower, further improving handling performance
• Adjustable front bodies allow you to set the ride height while maintaining correct spring pre-load
• Adjustable front and rear bodies allow the shock to operate in the correct valving range, regardless of ride height

PRODUCT DESIGN

• Strut and shock bodies finished with a durable gloss black powder coat for good looks and great longevity
• Threaded portions are are zinc-coated for optimum corrosion protection against rain and salt (finish will vary between clear or black zinc coatings depending on availability)
• Coil springs are powder-coated Reflex Silver Metallic finish for durability
• Red anodized, billet aluminum spring seats with locking collars allow for quick, on the car, adjustability with the included spanner wrenches
• Adjustable front and rear sway bar end links maintain proper sway bar pre-load after setting the desired ride height
• Self-locking, zinc-coated flanged nuts used for shock & strut shaft pins
• Rear shock adjuster housings are black E-coated for durability
• Integrated bump stops and dust boots

PRODUCT DEVELOPMENT

• Our ECS Tuning Adjustable Damping Coilover System was developed in-house, tested and inspected by our Research & Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology and methods, ensuring the necessary long term product testing was performed on multiple test vehicles in the harshest conditions available.

INSTALLATION AND SUPPORT

• Need installation tips? We put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! See our Installation PDF under the INSTALLATION Tab for more information.
• PLEASE NOTE: It's critical to check wheel offset for proper clearance to new suspension components before driving!! Wheel spacers may be required on higher offset wheels.
• This coilover set is for Audi 8v A3/S3 and VW MK7 GTI / Golf R and Jetta GLI models only
• Models with Dynamic Chassis Control (DCC) / Magnetic Ride Control will require DCC Cancelers - See ES3020497

INSTALLATION KIT:

This kit includes all the necessary components to replace while removing and installing replacement struts, shocks or coilovers. We've ensured that you have the highest quality components and the needed parts and hardware to service, as most of these parts have either failed or become close to the end of their useful service life.

Don't get caught halfway through the job just to find out you needed this. Get yours today and refresh your ride!

This Kit includes the following items:

FRONT

• (2) Front Strut Mounts
• (2) Front Upper Strut Bearings
• (2) Front Upper Strut Nuts
• (6) Front Upper Strut mount Bolts
• (2) Front Axle Bolts
• (2) Front Strut Pinch Bolts
• (2) Front Strut Pinch Bolt Nuts
• (2) Front Sway Bar End Link Nuts
• (6) Ball Joint Nuts

REAR

• (2) Rear Shock Mounts
• (2) Rear Shock Upper Mounting Nuts
• (2) Rear Shock Upper Mount Dust Caps
• (4) Rear Shock Upper Mounting Bolts
• (2) Rear Shock Lower Mounting Bolts
• (2) Rear Shock Lower Mounting Nuts
• (2) Rear Sway Bar End Link Mounting Bolts
• (2) Rear Sway Bar End Link Mounting Nuts

CONTROL ARM DETAILS:

Improve your connection with the road with our in house developed polyurethane front control arm bushings! Developed specifically for VW MK7 Golf/GTI/Golf R and Audi 8v A3/S3, featuring hand poured 90A durometer polyurethane bushings and electro-coated bushing sleeves, this upgrade kit will out-perform and out-last your factory, squishy rubber bushings.

As we know all too well, VW/Audi factory rubber bushings degrade over time, especially when faced with rough road conditions, age or mileage and lowered suspensions; the front control arm bushings play a critical road in proper road feel and handling of your vehicle.

If it's time for a replacement, don't settle for stock: Introducing our ECS Upgraded Front Lower Control Arm Kit with pre-installed Polyurethane bushings, for a very simple install!

Upgrading to polyurethane offers many improvements over the stock rubber bushings by supplying enhanced road feel, improved traction and longer lasting operation, all while operating squeak-free and with street friendly comfort. Polyurethane also carries higher load bearing capacity, less deflection and greater tear strength than rubber so you can feel confident in your car's front suspension.

A comprehensive upgrade kit made for you, in-house tested and proven in real world conditions. All parts comes pre-assembled, as shown, by our experienced in-house staff.

This kit includes the following:

• Stamped Steel, Black Painted Lower Control Arms
• Pre-Installed ECS 90A Durometer Front Control Arm Bushings
• Complete Front Control Arm Replacement Hardware*
  • Front position M12 control arm bolts - QTY 2
  • Rear position M12 control arm bolts - QTY 2
  • Rear position M12 control arm nuts - QTY 2
  • Ball joint securing nuts - QTY 6
• An Available Online Installation Document

*Models with 6spd DSG or Tiptronic transmission require additional dogbone mount hardware to "swing" the engine forward for removal. See dogbone mount installation kit - ES2951952

*Models with 7spd DSG transmission require additional dogbone mount hardware to "swing" the engine forward for removal. See dogbone mount installation kit - ES3610451
