MFD32 4G Gen 2 Digital Display

Data Display for Audi A6 4G - Complete Data Access

Looking for a data display for the Audi A6 4G (C7)? The MFD32 Gen2 Display, designed specifically for the Audi A6 4G C7 (2011–2018), offers a perfect solution. This display is also compatible with the S6, RS6, S7, and RS7 models.

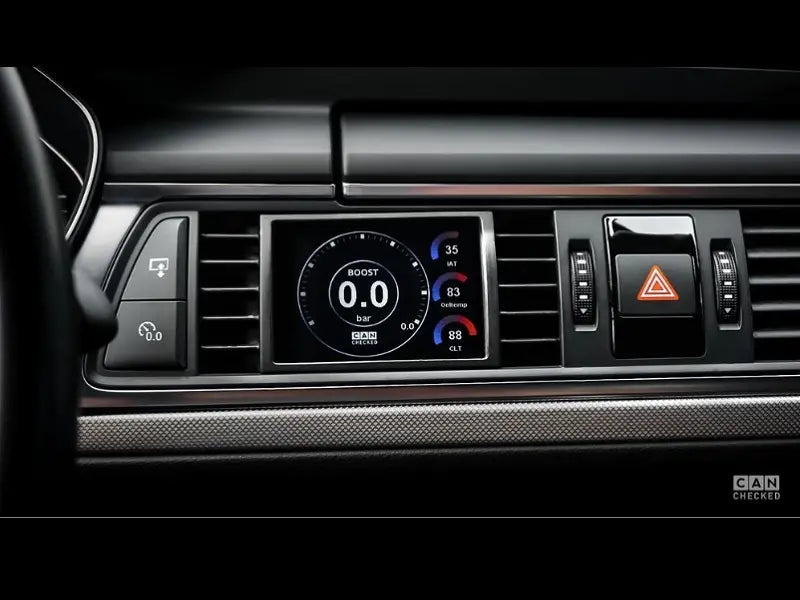

The MFD32 Gen2 provides comprehensive access to all vehicle data, including transmission and engine control unit information. The high-quality 3.2-inch screen presents this data clearly by querying sensors directly via the Can Bus. The display integrates seamlessly into the vehicle’s interior with a custom frame that maintains the ventilation slots.

The display emulates a manufacturer’s diagnostic tool, ensuring detailed data availability, with an optimized protocol for maximum query speed.

Key Features:

• Seamless Integration: Designed to fit perfectly into the vehicle’s interior.
• Sensor Querying: Capable of querying up to 128 sensors.
• Customizable Views: 10 configurable views using DSS - Display Setup Software.
• Pre-Configured Views: Ready-to-use views for an immediate start.
• Plug-and-Play Installation: Easy setup with the included cable set—just plug it in and start.
• Additional Inputs: Four extra analog inputs for monitoring exhaust temperature, oil pressure, and more.
• Enhanced Readability: Optional anti-glare film for better visibility.
• Diagnostic Capability: Sensor querying on par with manufacturer diagnostic tools.

Additional Features:

• Performance Measurements: Measure acceleration times with the Performance Widget—0-100, 100-200, 0-200 km/h.
• Data Logging: Log data on the internal SD card, either on-demand or continuously. All data from the last drive is stored.
• Pre-set Alerts: Customize and activate warning messages, such as alerts for exhaust temperatures exceeding 900 degrees.
• Analog Inputs: Connect additional sensors to monitor temperatures or pressures. An ethanol sensor can be connected to one of the digital inputs.
• Error Reading/Deletion: Read and delete engine control unit errors in plain text.
• Customization: Personalize the startup screen and select from various widgets.
• Vehicle Integration: Fits both left-hand drive and right-hand drive Audi A6 4G models.

Access to Engine Control Unit Data:

A pre-configured TRI file is included, defining all queryable sensors, such as:

• Temperatures: Exhaust, engine coolant, oil, intake air, outside, fuel, and transmission temperatures.
• Pressures: Boost pressure, ambient pressure, fuel pressure (pre-fuel pump and high-pressure pump).
• Lambda/Mixture: Lambda target/actual, injection time, short-term and long-term lambda adaptation.
• Miscellaneous: RPM, air mass (g/s), vehicle speed, throttle angle, total ignition angle, ignition angle correction per cylinder, N75 activation percentage, terminal 30 voltage, torque, and gear.

Additional values can be added based on the supported sensors in the engine.

Scope of Delivery:

• MFD32 Gen2 data display integrated into the ventilation insert
• Vehicle-specific connection cable
• Quickstart guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (to reduce reflections)

Connection and Extension:

Sensors can be connected via four analog inputs, supporting linear 0-5V and NTC sensors. The default TRI/TRX files include Wagner Tuning Display sensors that need only to be connected.
