Garrett GEN2 GTX3076R Dual Ball Bearing turbocharger

100 in stock


Regular price $2,265.99
Sale price $2,265.99 Regular price
Shipping calculated at checkout.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Used for custom, big turbo applications only - ECS Tuning does not offer support on tuning, fueling, exhaust manifold, etc

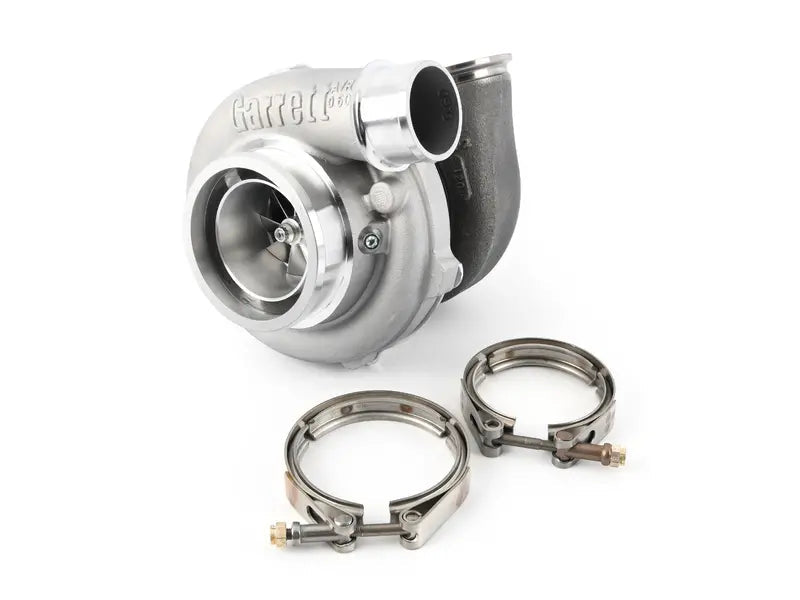

Garrett GEN2 GTX3076R dual ball bearing turbocharger with a T04E frame (4" inlet and 2" outlet compressor housing) and a .61 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 700HP!

The Garrett GEN2 GTX3076R fits turbine housings for Garrett GT30 and GTX30 series turbochargers with a 60mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly

PRODUCT SPECIFICATIONS:

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing: T04E Frame (4" Inlet & 2" Outlet) . 60 A/R w/ Gen2 Anti-Surge Shroud
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: .61 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
