DV+ Performance Diverter Valve T9351

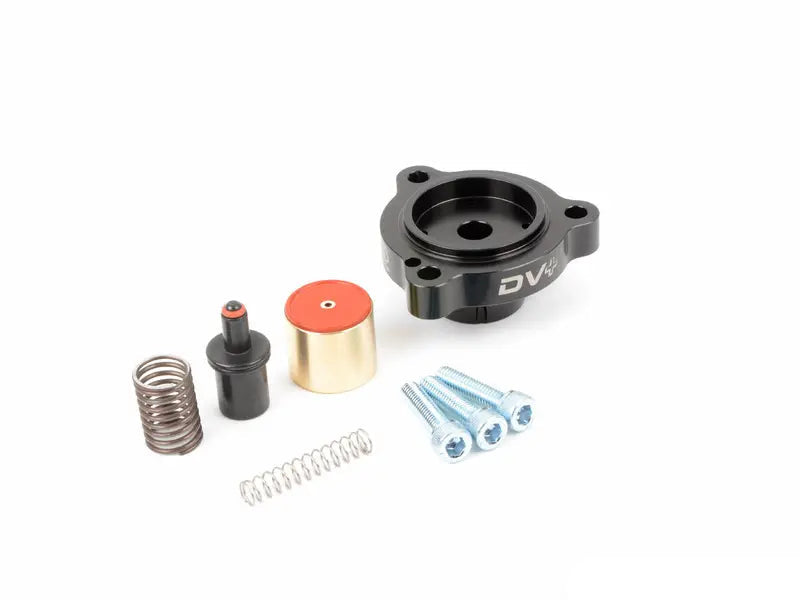

The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodized billet aluminum housing fitted with a brass piston machined to exacting tolerances.

Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install.

GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn't cause compressor surge/turbo flutter. Oh, and it doesn't require different springs or frequent re-builds.

• Retains the factory solenoid coil for seamless integration
• Replaces plastic valve parts with metal for reliability and strength on chipped engines
• Direct-fit replacement with GFB’s TMS benefits
• Exclusive “pilot-actuated” valve mechanism for rapid response at high boost

Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.

However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.

Common OE Problem #1

• The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of chip tuning.

Common OE Problem #2

• The plastic piston-type leaks far more than most people realize (by design, not from wear), and doesn't always close after a high-boost gear shift.

Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost.

With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity - more of a compromise than a solution.
