This tool set is used to insert the front drive axle on many BMW, MINI ,VAG, Porsche Cayenne, Renault, Mercedes and more.

Product Description

These vehicles have strict tolerances between the drive shaft splines and the wheel hub, you must use the special tool like this Schwaben tool for assembly work
This insertion tool can be simple and quickly get the drive shaft fitted into the wheel hub.
With wide application in various specifications for drive shaft.
Mainly used for VW-Audi (Touareg etc.), Mercedes, BMW, MINI, Porsche (Cayenne etc.), Peugeot, Renault, Opel/Vauxhall, etc
Simple to use , select correct spindle tool, screw onto the drive shaft install collar and pull drive shaft in.

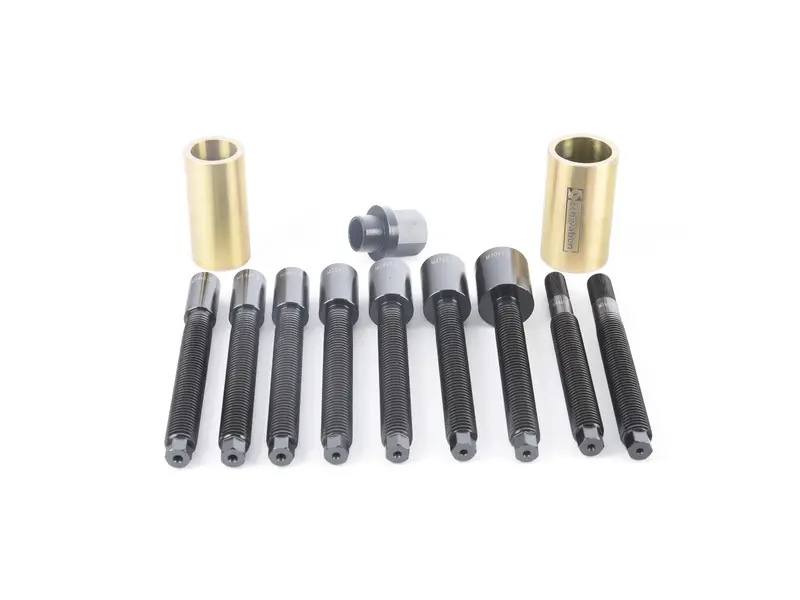

- Kit Contains:
  - 9 Spindles,
  - M16 X 1.5 Inner thread
  - M18 X 1.5 inner thread
  - M20 X 1.5 inner thread
  - M22 X 1.5 inner thread (Most common for MINI Coopers R50-R61)
  - M24 X 1.5 inner thread
  - M27 X 1.5 inner thread
  - M30 X1.5 inner thread
  - M14 X 1.5 outer thread
  - M16 X 1.5 outer thread (Most common for MINI Coopers F55+)
  - 1- Shoulder Nut
  - Housing bushing 39mm outer X 29mm inner
  - Housing bushing 46mm outer X 36mm inner
  - Blow Molded case

Cross Reference

Klann
KL-0177-2
KL-0177-3
