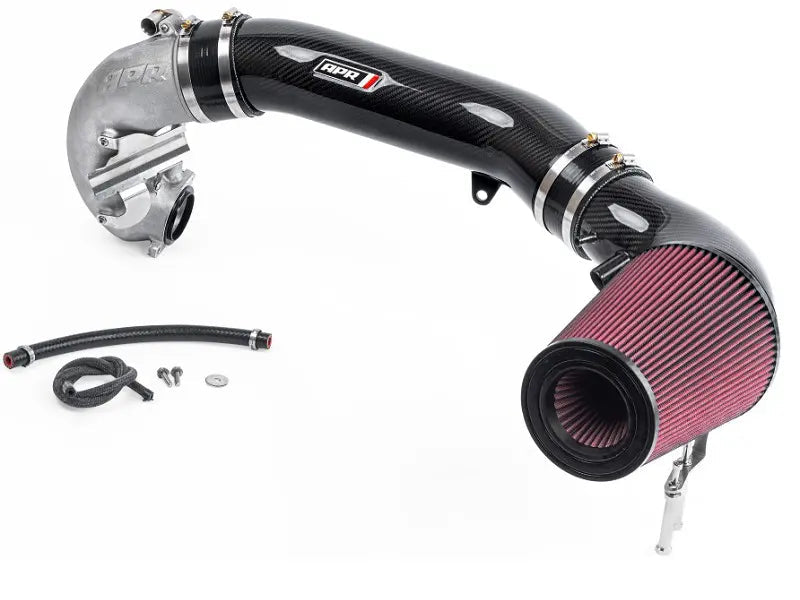

APR Turbo Inlet System With APR Intake Filter System

The APR Turbocharger Inlet System outflows the factory components by up to 45%, and jumps to 60% when adding the APR Intake Filter. This is firstly achieved through elimination of the most critical restriction in the entire intake system, the turbocharger inlet pipe. Because of this restriction, no intake airbox / filter design can physically match the gains achieved by upgrading to the APR Turbo Inlet System alone. This inlet is the first step one should take when upgrading their intake system and paves the way for even more gains by adding the optional intake filter.

The APR Turbocharger Inlet System uses a massive 4” carbon fiber inlet tube that attaches to the factory airbox, or the APR Intake Filter System. Attached to the carbon fiber tube is a massive 4” cast aluminum inlet which is organically shaped to retain the largest possible cross-sectional area within the pipe all the way to the inlet of the turbocharger’s compressor cover. Despite the visually odd shape, keeping the cross-sectional area as large as possible is the key to the pipe's performance gains, and greatly outflows smooth looking continuously tapering designs.

Interlocking adapter rings form a port-matched ideal entrance to the turbocharger, while larger rings (sold separately) provide port-matched support for even larger hybrid turbocharger upgrades. A thick stainless-steel heat shield protects the pipe from the hot turbocharger manifold, and an external stainless PCV pipe provides proper PCV placement without impacting the inlet’s design.

Finally, adding the optional APR Intake Filter completely transforms the system from subtle to extreme. Our massive 9” long cotton filter with frontal opening connects to a 6” carbon fiber inlet tube that gradually necks down to the 4” back tube. You will hear every ounce of the 5-cylinder turbocharger system’s massive demand for airflow, and you’ll do so at a 60% CFM improvement over stock! This was only possible with an open filter system as the airflow demands called for an unboxed design. Simply put, this is the best intake system on the market for satisfying uncompromisingly demanding airflow requirements.

Includes:

• APR Turbocharger Inlet System - CI100038
• APR Intake Filter System - CI100038-A
• APR Intake Filter System DV Adapter for 2019_ models - CI100038-G

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
