4 Turbo Inlet Pipe

Name: 4 Turbo Inlet Pipe
Brand: Bimmerspeed
SKU: 034-108-5021
Price: 367.0 USD
Availability: InStock

100 in stock

$367.00

Shipping calculated at checkout.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

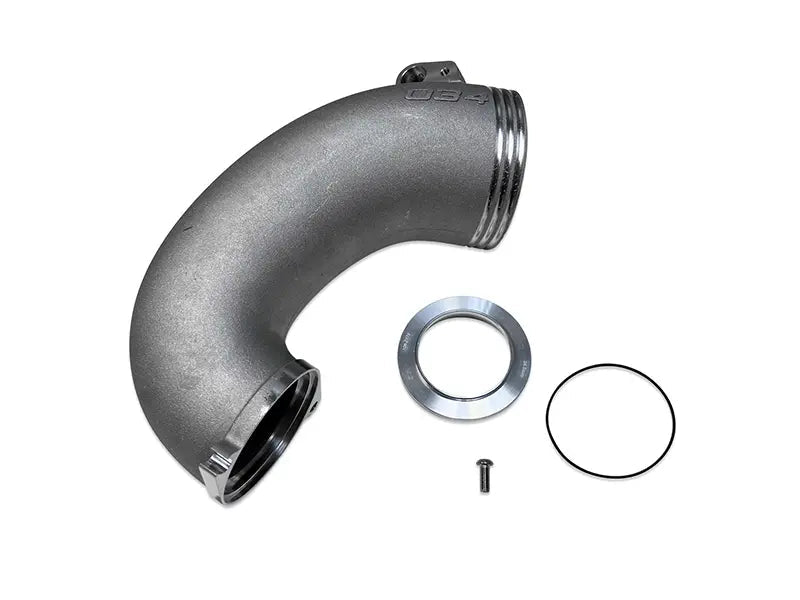

The 034Motorsport 4" Turbo Inlet Pipe for the 2.5 TFSI EVO in the Audi 8S TTRS & 8V.5 RS3 is an essential upgrade to optimize power by eliminating a crucial flow restriction in the intake tract. The 4" Turbo Inlet Pipe is cast from A356 Aluminum and utilizes CNC-Machined 6061-T6 Aluminum Turbo Inlet Adapters that perfectly mate to allow smooth air entry into the compressor housing. This Turbo Inlet Pipe retains provisions for the factory PCV system fitting in the factory location.

The 034Motorsport 4" Turbo Inlet Pipe is designed for use with 4" intakes. The CNC Machined edge retains the inlet hose securely to the inlet pipe. This will not fit Right-Hand Drive vehicles.

FLOW BENCH TESTING:
The optimized volume through the elbow bend and smooth transition into the compressor housing translates into substantially higher airflow than the OEM turbo inlet as well as other competitors on the market. Airflow improvements can lead to higher horsepower and torque gains in applications that require higher airflow.

FEATURES:

Cast from A356 Aluminum
Compressor Inlet Flange Machined for Smooth Airflow Into Compressor Housing
CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow
Stock Turbo - 56.5mm
Optional Adapter Ring Available Separately for TTE700 - 62.8mm
Designed to Work with 4" Intake Tubes
38% Increase in Flow at 28” of H2O Over Factory Turbo Inlet
Stock Inlet - 503 CFM
034Motorsport Inlet (Stock Turbo Ring) - 693 CFM
034Motorsport Inlet (62.8mm Ring) - 758 CFM
CNC Machined Edge Retains Intake Coupler Securely
CNC Machined to Retain OE PCV Hose
Proven Power/Torque & Airflow Gains
Direct Bolt-On Installation

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.

Cross Reference

07K133359G
07K133359H
